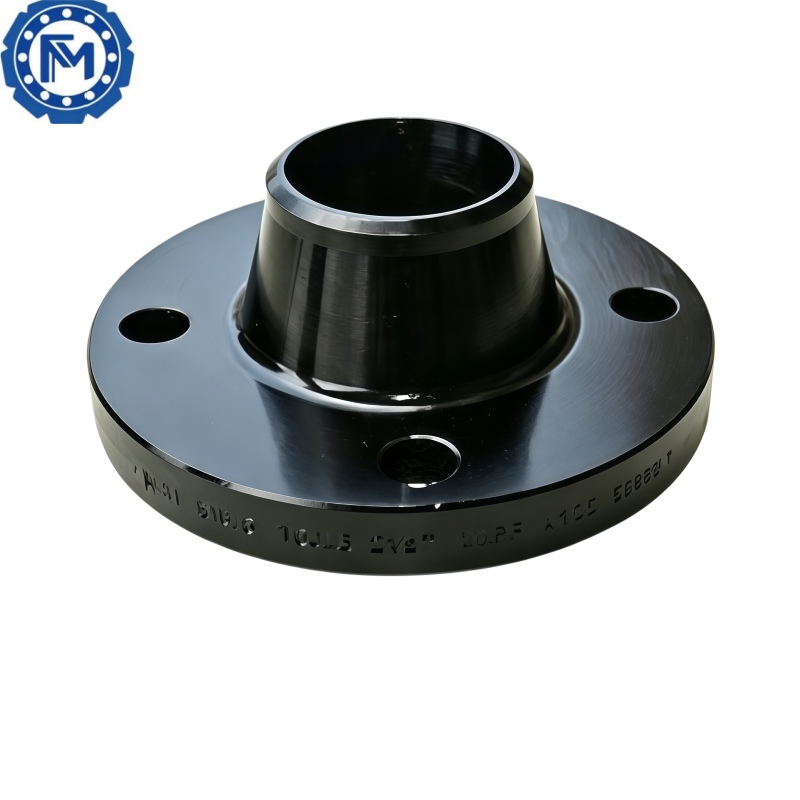

ANSI B16.5 Welding Neck Flanges

High-Strength Flange Solution for Critical Piping Systems

ANSI B16.5 Welding Neck Flanges are manufactured in strict accordance with ASME/ANSI B16.5 standards and are designed for high-pressure, high-temperature, and severe operating conditions. Featuring a long tapered hub, these flanges are butt-welded directly to the pipe, providing a smooth transition that minimizes stress concentration and improves flow characteristics. Their robust design offers outstanding structural integrity, making them the preferred choice for critical industrial piping systems where safety and reliability are essential.

Premium Materials and Precision Manufacturing

Our ANSI B16.5 Welding Neck Flanges are manufactured from high-quality carbon steel, stainless steel, alloy steel, duplex stainless steel, nickel alloys, and other specialized materials to meet diverse industrial requirements. Advanced forging technology, precision CNC machining, controlled heat treatment, and rigorous dimensional inspections ensure exceptional strength, accurate tolerances, and superior surface finish. Every flange is produced in full compliance with ASME/ANSI B16.5 specifications to guarantee compatibility with international piping standards.

Superior Mechanical Strength and Sealing Performance

The long tapered neck design of ANSI B16.5 Welding Neck Flanges significantly reduces stress concentration at the flange-to-pipe connection, providing exceptional fatigue resistance and enhanced structural stability. Butt-weld construction creates a continuous metal connection that delivers superior strength and leak-tight sealing under high pressure, extreme temperatures, thermal cycling, vibration, and dynamic loading. These characteristics make welding neck flanges one of the most reliable flange types for demanding industrial applications.

Comprehensive Size and Pressure Range

Our welding neck flanges are available in NPS 1/2" to 24", with larger sizes available upon request. Pressure ratings include Class 150, Class 300, Class 400, Class 600, Class 900, Class 1500, and Class 2500, covering a wide range of pipeline requirements. Standard facing options include Raised Face (RF), Flat Face (FF), and Ring Type Joint (RTJ). Customized bore sizes, wall thicknesses, special materials, and corrosion-resistant surface treatments can also be supplied according to customer drawings and project specifications.

Suitable for Demanding Industrial Applications

ANSI B16.5 Welding Neck Flanges are extensively used in oil and gas production, refineries, petrochemical plants, chemical processing facilities, offshore platforms, power generation, LNG terminals, marine engineering, water treatment systems, pharmaceutical manufacturing, pulp and paper mills, and other high-performance industrial piping systems. They are particularly suitable for pipelines operating under high pressure, elevated temperatures, and cyclic loading conditions where maximum reliability is required.

Comprehensive Quality Assurance

Every ANSI B16.5 Welding Neck Flange undergoes comprehensive quality inspections throughout the manufacturing process. Raw material verification, chemical composition analysis, mechanical property testing, dimensional inspection, hardness testing, non-destructive testing (NDT), ultrasonic testing (UT), magnetic particle inspection (MPI), surface examination, and final visual inspection are performed to ensure full compliance with international standards and customer specifications. Third-party inspection services and complete material traceability are available upon request.

OEM Manufacturing and Worldwide Supply

We provide OEM and customized manufacturing services for EPC contractors, engineering companies, distributors, and industrial customers around the world. Customized materials, pressure classes, special machining, anti-corrosion coatings, laser marking, packaging, and inspection documentation can all be supplied according to project requirements. Backed by advanced manufacturing facilities, experienced engineering teams, and efficient global logistics, we deliver high-quality ANSI B16.5 Welding Neck Flanges with consistent quality, dependable performance, and timely delivery for global industrial projects.
